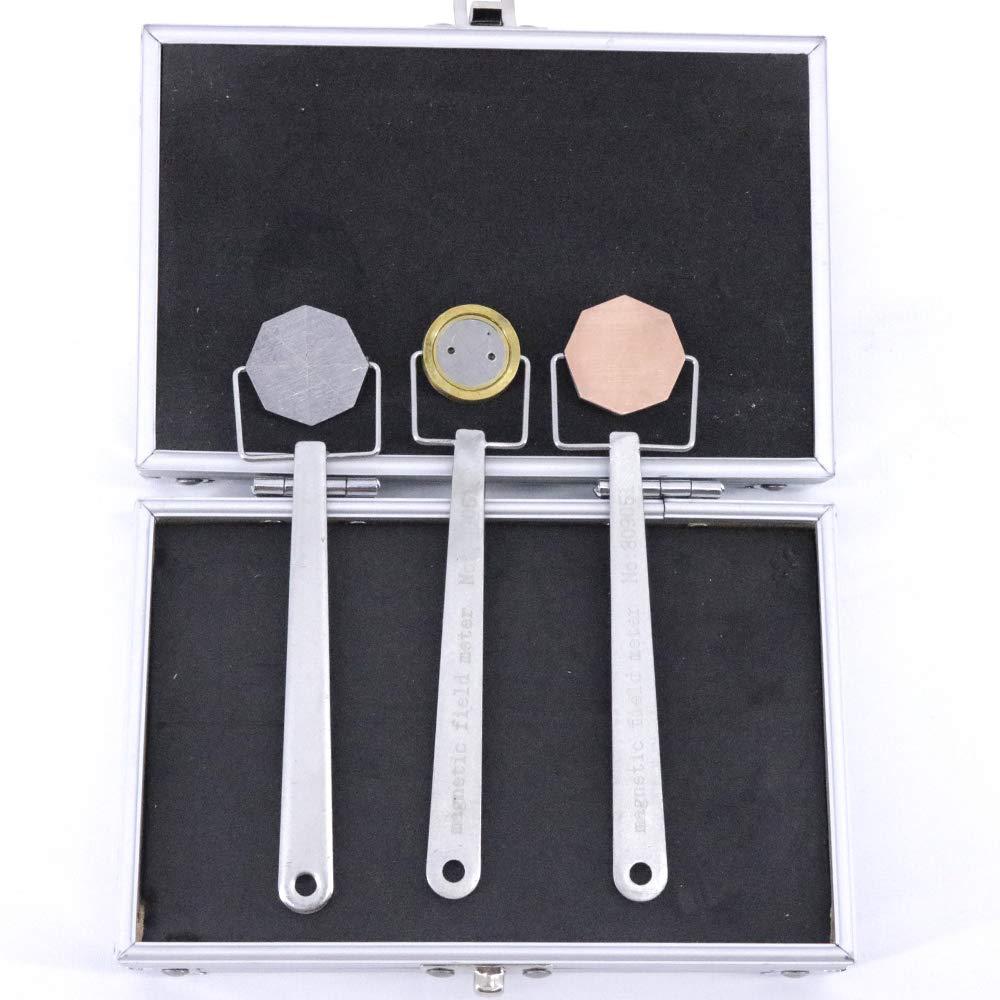

PIE GAUGE

Pie Gauge is an MPI reference tool used to verify magnetic field direction and magnetization effectiveness during Magnetic Particle Inspection (MPI) of ferromagnetic components.
NEED EQUIPMENT INFORMATION? Talk to our NDT experts for specifications, availability and quotation.
PRODUCT INFORMATION

Product Details.

Pie Gauge is a magnetic field direction indicator used in Magnetic Particle Inspection (MPI) to verify magnetic field orientation and assess the effectiveness of magnetization during NDT inspection.

Key Features:

  • Circular ferromagnetic reference gauge
  • Radial non-ferromagnetic/copper divisions
  • Provides visible magnetic particle indications
  • Helps verify magnetic field direction
  • Suitable for MPI yokes, coils and bench-type systems
  • Compact and easy to use
  • Reusable NDT inspection accessory

Applications:

  • Magnetic Particle Inspection (MPI)
  • Weld inspection
  • Automotive component testing
  • Aerospace component inspection
  • Manufacturing quality control
  • NDT laboratory and field inspection

Important technical note: A Pie Gauge is primarily a qualitative magnetic-field direction/adequacy indicator; it should not be described as a numerical Gauss-strength measuring instrument.
